Spool Splitting & Drawing Automation Tool

Streamline Construction Workflows with Automated Spool Splitting and Drawing Generation

Turn Design Data Directly into “Field Value”

UI shown is under development and may change upon official release.

The optimal splitting solution,
together with construction drawings.

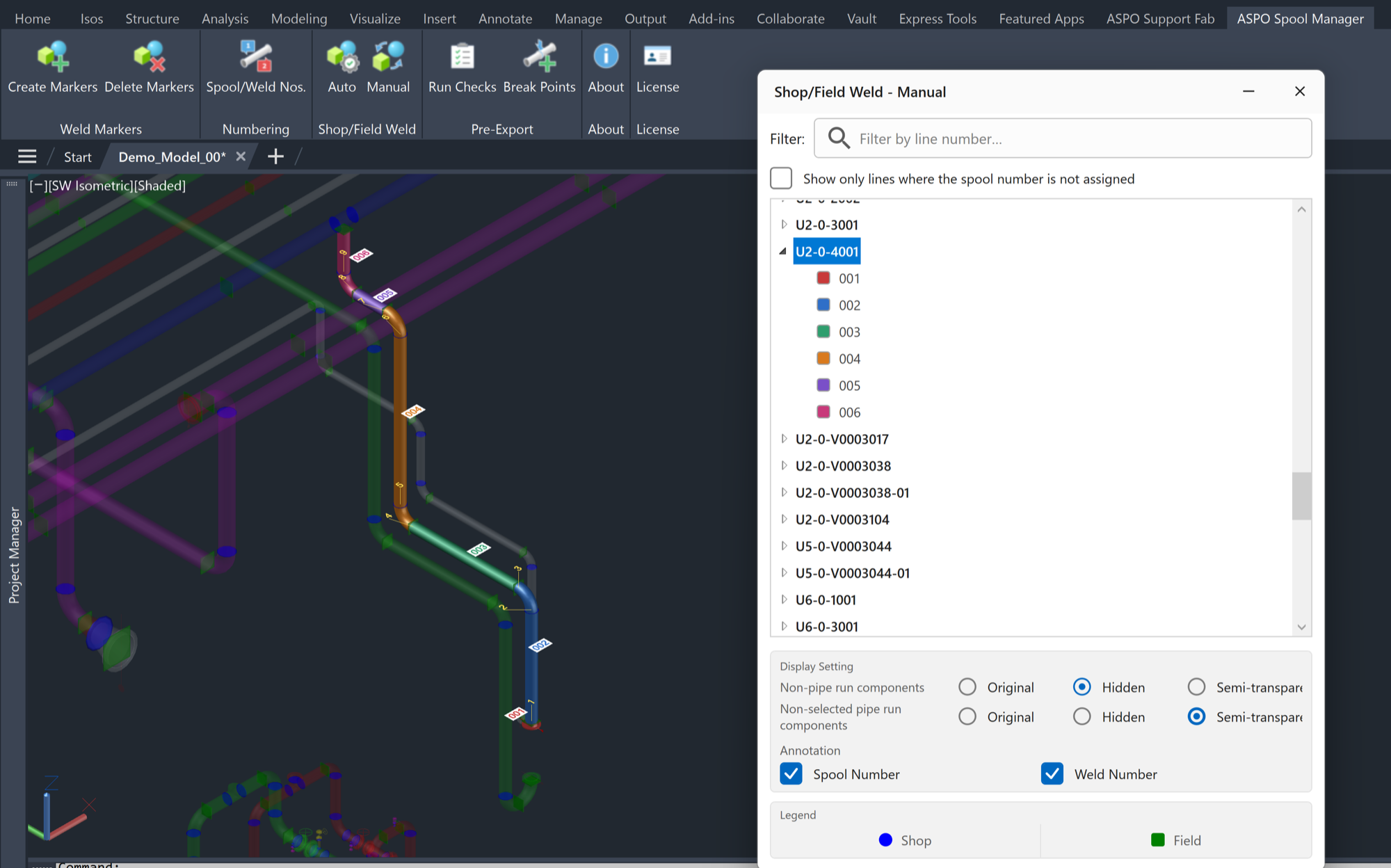

Automate spool splitting with predefined rule sets. Directly generates spool drawings with dimensions, welds, and BOMs from models created in Autodesk AutoCAD Plant 3D.

Watch the Demo →

ASPO Spool Manager for Construction

The Problem

Challenges Solved by ASPO.

Line Number / Spool Number become disconnected across systems

Drawings are “just lines and text” — data utilization is impossible

Spool splitting depends heavily on individual experience.
Spool drawing creation is manual.
Welding and progress management are fragmented in Excel.

The Impact

Standardize design and
visualize construction — together.

With Spool Manager, you can operate spool splitting through construction management on a single, continuous data thread.

Standardized and reproducible spool design

Significant automation of drawing creation

Data-driven construction management (welding & progress)

Business Outcome

Improved Fabrication Efficiency

Reduced On-Site Rework

Visualization of Progress

* Based on in-house research. Data continuity from design to construction continuously reduces spool fabrication and installation rework.

Features

Spool Manager consists of 5 features covering splitting, drawing, identification, and reporting.

Semi-Automatic Spool Splitting

Automate spool splitting with predefined rule sets.

Auto Spool Drawing Generation DWG

Output construction drawings with dimensions, Weld Markers, BOMs, and Spool Numbers in one click.

Automatic Spool Number Assignment

Automatically assigns unique Spool Numbers. Linked with Line Number to maintain SSOT.

Welding Management (Type & Status) Coming Soon

Manages weld types and progress statuses as structured data, enabling field visibility.

Report Output (CSV / Excel) Coming Soon

Outputs spool lists, weld lists, and BOMs in CSV / Excel format for immediate integration with existing construction management tools.

Demo

Demo Video

Get Started

Try ASPO in the Field.

The ASPO Series is scheduled for official release in Summer 2026. Register through the form below to receive priority access to product information at launch.
